How to Properly Use UN 4G Boxes for Different Types of Dangerous Goods

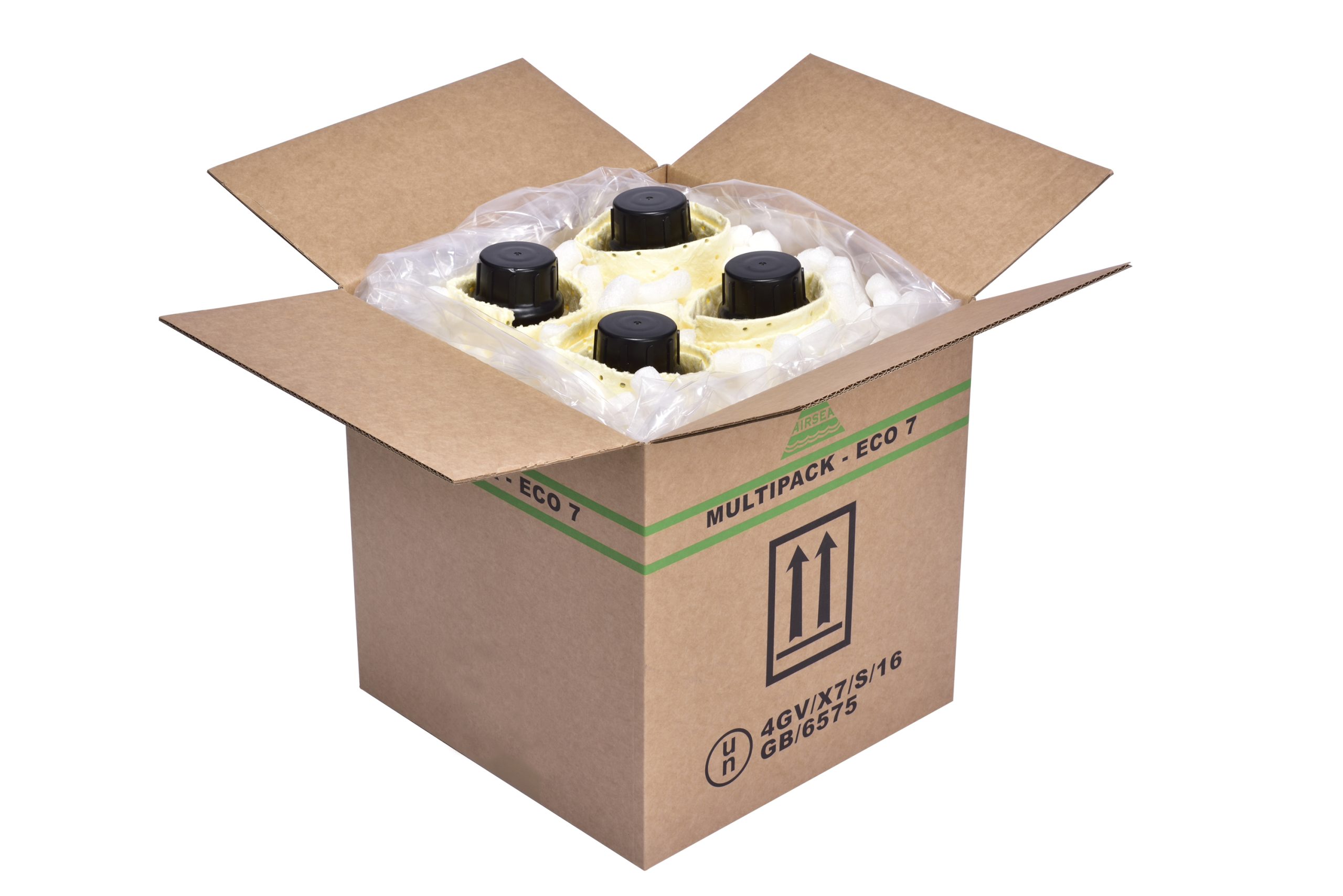

C7170 Air Sea Containers

Shipping dangerous goods can be a complex and high-risk task. To comply with international regulations and ensure the safe transit of hazardous materials, businesses rely on UN-certified packaging, with UN 4G boxes being among the most popular options.

These boxes are designed to contain different kinds of dangerous goods by providing multiple layers of protection. However, using them improperly can result in safety breaches, fines, or even accidents.

What are UN 4G Boxes?

UN 4G boxes are a type of combination packaging certified to carry hazardous materials

The “4G” designation indicates that they have undergone rigorous testing to comply with UN standards for shipping dangerous goods, including drop, pressure, and vibration tests.

These boxes typically consist of an outer fibreboard container with approved inner packaging, such as bottles, jars, or cans, to safely contain liquids, solids, or gases.

Why Use UN 4G Boxes?

  • They comply with global standards, including IATA, IMDG, and ADR regulations.
  • They are versatile and can hold different dangerous goods, including flammable liquids, corrosive substances, and toxic chemicals.
  • UN 4G packaging ensures the safe and compliant handling of goods during air, road, or sea transport.

How to Properly Use UN 4G Boxes for Different Types of Dangerous Goods

Using UN 4G boxes effectively requires more than just placing items inside. It involves careful selection, assembly, and inspection to meet compliance and safety requirements. Here are key steps and considerations for properly using these boxes for various dangerous goods.

1. Identify the Dangerous Goods Classification

Before using a UN 4G box, determine the classification of the dangerous goods you’re shipping. This will guide your choice of inner packaging and ensure that the product is compatible with the materials. Dangerous goods are classified into nine classes, such as:

  • Class 3: Flammable liquids (e.g., paint, solvents)
  • Class 5.1: Oxidising substances (e.g., bleach)
  • Class 8: Corrosive materials (e.g., acids, alkalis)

2. Select the Appropriate Inner Packaging

Each type of dangerous good requires specific inner packaging that aligns with its properties:

  • Flammable liquids: Use glass or metal bottles with leak-proof caps.
  • Toxic solids: Use sealed plastic pouches to prevent contamination.
  • Corrosive chemicals: Opt for high-density polyethene (HDPE) containers resistant to chemical reactions.

Make sure that the inner packaging fits snugly inside the UN 4G box to avoid movement during transit.

3. Follow the Assembly Instructions for the 4G Box

Proper assembly is crucial for the box to maintain its certification. The packaging manufacturer will provide detailed instructions on how to assemble the box, which may include:

  • Folding the outer fibreboard correctly
  • Securing the inner packaging with cushioning materials
  • Using approved tape and seals to close the box

Incorrect assembly can compromise the safety and compliance of the shipment, so it’s important to follow the instructions precisely.

4. Check the UN Marking on the Box

Every certified 4G box will have a UN marking that provides crucial information, such as the type of packaging, the weight limit, and the specific goods it can carry.

An example of a UN marking is:

4G/X15/S/23/GB/12345



  • 4G: Combination packaging
  • X: Suitable for Packing Group I, II, and III goods
  • 15: Maximum gross weight in kilograms
  • GB: Country code where the box was tested
    Ensure the marking matches the requirements for your shipment to avoid non-compliance.

Using the Right Packing Groups for Different Goods

Dangerous goods are assigned Packing Groups (PG) based on their level of hazard:

  • PG I: High danger (e.g., explosives, highly toxic chemicals)
  • PG II: Medium danger (e.g., flammable liquids, pesticides)
  • PG III: Low danger (e.g., cleaning agents)

Make sure the UN 4G box you select is rated for the correct Packing Group. Boxes marked with X are the most robust and suitable for PG I, while those marked with Y or Z are for lower-risk goods.

Cushioning and Absorbent Materials

For liquids, it’s essential to include absorbent materials inside the box to contain leaks in case of accidental spillage. Cushioning materials such as bubble wrap, foam, or vermiculite should be used to protect fragile inner containers from impact.

Ensure that these materials:

  • Do not react to the goods being transported.
  • Provide adequate space between inner packaging units.
  • Are securely packed to avoid movement during transit.

Labelling and Documentation Requirements

Proper labelling and documentation are mandatory for dangerous goods shipments. The following steps help ensure compliance:

  • Affix the hazard labels on the outer box, such as “Flammable Liquid” or “Corrosive.”
  • Include a UN number on the packaging that corresponds to the dangerous goods being transported.
  • Attach a Dangerous Goods Declaration (DGD), which provides details about the shipment and handling instructions.

Without accurate labels and documentation, shipments can be delayed or rejected by carriers.

Testing and Inspection Before Shipment

Before dispatching your shipment, it’s essential to conduct a thorough inspection to confirm that everything is in order:

  • Verify that the inner packaging is secure and not leaking.
  • Check that all labels and markings are correctly applied and legible.
  • Ensure the weight of the shipment does not exceed the box’s limit as indicated by the UN marking.

Some companies also perform pre-shipment testing, such as drop tests, to confirm the packaging’s integrity.

Transport Mode Considerations: Air, Road, and Sea

Different transport modes have unique packaging requirements. For instance:

  • Air Transport: Requires compliance with IATA regulations, which may involve additional pressure-testing for liquids.
  • Sea Transport: Must follow the IMDG Code, focusing on proper stowage and containment for maritime conditions.
  • Road Transport: Adheres to ADR standards across Europe, with an emphasis on clear labelling and safety.

Make sure your packaging meets the specific requirements of the transport mode you’ll be using.

Benefits of Properly Using UN 4G Boxes

1. Compliance with International Regulations

Using the right UN-certified packaging helps businesses meet global transport regulations, avoiding fines and shipping delays.

2. Minimised Risk of Accidents and Leaks

Proper packaging reduces the chances of accidents, protecting both people and the environment from hazardous materials.

3. Increased Customer Confidence

Customers trust companies that prioritise safety and compliance. Proper use of UN 4G boxes reflects your business’s commitment to responsible practices.

Conclusion: Prioritising Safety with Custom Packaging Solutions

UN 4G boxes play a crucial role in the safe and compliant transportation of dangerous goods. However, simply having the right box isn’t enough—understanding how to use it properly is essential. From selecting appropriate inner packaging to ensuring accurate labelling, every step of the process contributes to safety and compliance.

With global regulations becoming increasingly strict, businesses that invest in proper packaging practices will not only avoid fines but also foster trust with customers and partners. Whether you’re shipping flammable liquids or corrosive chemicals, using UN 4G boxes the right way ensures smooth operations and peace of mind.
